15TPD Maize Flour and Grits Production Line Installed in Azerbaijan

Custom 15-ton Corn Flour Production Solution from ABC Machinery

With years of experience in grain processing equipment R&D and overseas project implementation, the technical team of ABC Machinery has tailored an overall combined production solution for corn grit and maize flour featuring high efficiency, energy saving, low consumption and easy operation & maintenance. This set of solutions is designed in accordance with the local market characteristics in Azerbaijan, clients’ investment budgets and production requirements, and it is equipped with a complete set of corn mill to support stable operation. The detailed corn processing technological flow is as follows:

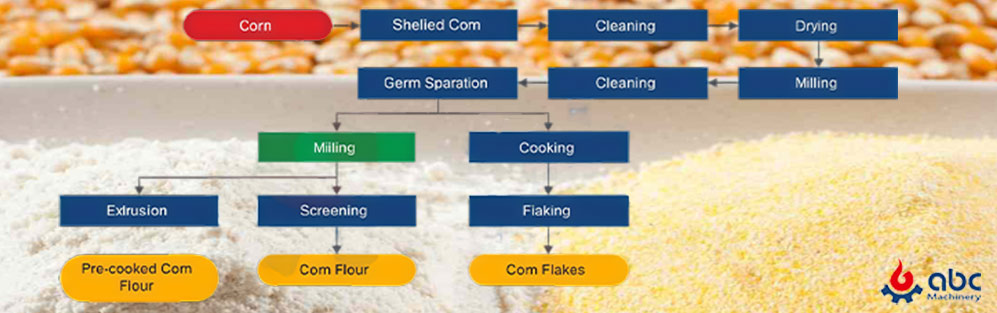

 Corn Grits and Maize Flour Manufacturing Process Flow Chart

High-Efficiency Cleaning System with ≥99% Impurity Removal

• Aiming at the actual situation that the impurity content of local corn raw materials in Azerbaijan fluctuates between 3% and 8%, this corn processing equipment adopts a three-stage cleaning structure: vibrating screen classification + specific gravity separation + air separation and dust removal. This corn crushing machine can efficiently handle various mixed impurities in raw corn.

• During system operation, impurities with particle sizes ranging from 0.5mm to 20mm can be classified and removed. The removal rate of heavy impurities (stones, metal particles) is ≥99%, and the removal rate of light impurities (dust, broken straws) is ≥98%.

• Under standard continuous operating conditions, the overall cleaning efficiency of the whole machine is stably maintained at 99%±0.5%, which is obviously higher than the average level of 85%–92% of conventional corn production equipment in the industry. Meanwhile, this system controls the proportion of non-corn impurities entering the subsequent equipment to ≤0.3%, which greatly reduces the mechanical wear of the follow-up corn peeling equipment and corn flour machine. The average wear rate drops by 20%–30%, and the replacement cycle of core vulnerable parts can be extended to 800–1200 operating hours.

Controlled Dehulling Technology for Improved Product Quality

• This corn peeling equipment dynamically matches parameters according to the local corn moisture content (11%–16%) and hardness differences, and realizes flexible peeling through frequency conversion speed regulation and friction pressure adjustment. It works perfectly with the matched corn mill machine to guarantee continuous production.

• Core technological parameters: Rotation speed control range: 800–1200 rpm, peeling uniformity: ≥95%, single peeling damage rate: ≤5%. Compared with traditional single-stage peeling equipment (the damage rate is usually 8%–12%), this system optimizes damage control by 30%–45%.

• In terms of finished products, the standard deviation of corn grit particle size is controlled within ±0.2–0.4mm, which greatly improves particle consistency and makes the products fully comply with the procurement requirements of food processing enterprises for "standard raw materials". We adopt professional corn grit machine to precisely control the particle size of finished corn grit.

Double Polishing System for Higher Product Value

• The dual polishing module adopts the structure of "primary germ removal + fine polishing" to carry out secondary stripping treatment on residual corn germs and fine bran. According to actual technological tests: Fine bran removal rate: ≥92%, surface cleanliness increased by about 20%–35%, residual rate of black spots and impurities: ≤1%.

• After being processed by this corn processing technology, the finished products show excellent performance in key indicators such as color, impurity control and particle size uniformity, and the proportion of Grade A products increases by about 15%–25%.

• In terms of market performance, such high-cleanliness corn grit and maize flour products can usually achieve a 30%–50% increase in market selling price, and the probability of entering high-end sales channels is about 2–3 times higher than ordinary products. The whole production unit belongs to a standard flour mill production line with excellent comprehensive performance.

Multi-Grade Production System with 95% Raw Material Utilization

• This complete set of corn processing equipment adopts the technological structure of "three-stage grit making + multi-stage circulating crushing", so that a single corn raw material can produce multiple grades of products at the same time. The whole production process relies on professional corn processing machine to realize multi-grade output.

• Specific technological capabilities: Corn grit particle size range: 0.3–3.0 mm (3–5 adjustable grades), maize flour fineness range: 60–120 mesh, parallel output capacity of multiple products: 3–6 specifications. With the closed-circuit recycling design, the system controls the material return rate in traditional processing to ≤5%, and the overall comprehensive raw material utilization rate reaches 95%–96%.

• Compared with the traditional single-product corn production line (utilization rate is about 75%–85%), this solution increases the actual material economic value release rate by 10%–20%. We can also build a complete maize mill plant based on clients’ production scale to realize large-scale processing.

Fully Enclosed Dust Removal System for Clean Production

• The dust removal system adopts a modular bag filter structure combined with a negative pressure centralized collection design to efficiently capture grain processing dust (main particle size ranges from 1–50μm).

• Key operating indicators: Dust collection efficiency: ≥99.5%, emission concentration: ≤10 mg/m³ (complying with international grain processing environmental protection standards), system air leakage rate: ≤1%.

• Under continuous operation, the workshop dust concentration is stably controlled at 2–8 mg/m³, which is far better than traditional open-type corn production equipment (usually >20 mg/m³). Meanwhile, about 3%–8% of materials can be recovered from the collected dust, which can be re-fed into the flour milling system in some production modes to create additional economic benefits.

As a complete corn processing plant cost controlled corn processing line, this project fully verifies the adaptability of ABC Machinery’s corn production equipment in overseas markets. From raw material cleaning to final packaging, the entire corn processing technology operates continuously, which not only improves production efficiency, but also ensures the consistency and market competitiveness of corn grit and maize flour products. We also provide reasonable planning for flour mill plant layout for all clients to make full use of plant space.

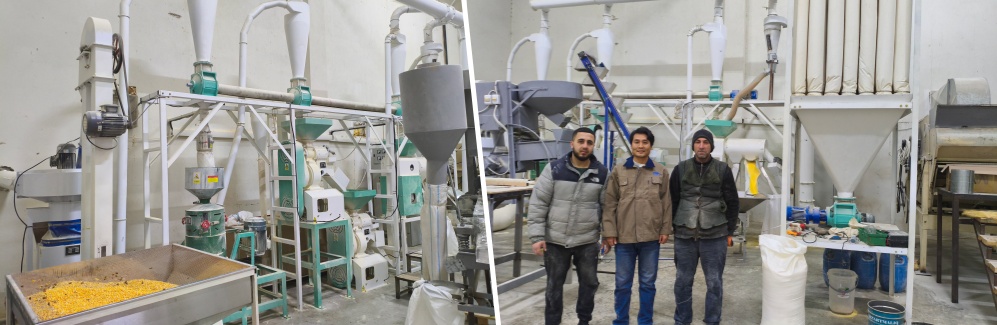

Successful Maize Flour Plant Projects in Azerbaijan

At present, this 15T/D corn grit and maize flour combined production line has been put into stable operation with zero equipment failure during continuous running. Core indicators including finished product yield, raw material utilization rate and energy consumption control have reached and exceeded the industry average level. The stable automatic production capacity and superior finished product quality of the equipment have won high recognition from clients, setting a reliable demonstration case for the upgrading of local deep corn processing industry. If you have any question，please contact us to get free and professional answers immediately.

One-Stop Grain Processing Solutions from ABC Machinery

Having been deeply engaged in the R&D of deep grain processing equipment and overseas project implementation for many years, ABC Machinery has rich practical experience in overseas projects. We can optimize production technology, equipment and factory layout in a targeted manner according to clients’ production capacity, investment budget, site conditions, local market demands and industry policies, to meet the demands from small processing workshops to medium and large deep processing factories.


Global Flour Milling Machine Investors Visiting ABC Machinery

We provide full-chain one-stop services including project planning, process customization, equipment manufacturing, installation & commissioning and lifelong technical after-sales support. If you are looking for a reliable corn processing equipment supplier, please feel free to contact ABC Machinery to get exclusive solutions for corn production lines and the latest quotations. Our professional corn flour mill machine and complete flour mill plant will bring stable benefits to your processing business.
