Wheat Flour Mill Plant Layout Design Tips for High Efficiency Production

Note: The above dimensions refer to the net installation space for standard wheat machinery. A walking inspection passage of no less than 1.2 meters and material turnover area must be reserved during civil construction. For old factory renovation, professional layout optimization can reduce rework costs by 19% and help pass explosion-proof, environmental protection and fire safety compliance inspections at one time, effectively lowering the overall flour mill plant cost.

If you are planning to build a new wheat flour plant, renovate an old processing workshop, or optimize production arrangements to reduce energy consumption and failure rates, ABC Machinery, one of the reliable flour mill plant manufacturers, provides free technical consultation, factory dimension verification, capacity calculation and customized layout drawings. Feel free to contact us for professional support.

Overall Planning and Zoning Layout Design for Flour Processing Workshops

High-quality workshop planning for a flour processing plant is not simply stacking processing machines, but a systematic project combining production capacity, site conditions, power load and complete production technology. Scientific layout maximizes equipment utilization and avoids unnecessary capacity waste for both new wheat processing plant and renovated projects.

Pre-measurement Conditions for Professional Workshop Layout

Before designing customized drawings for any flour mill, standardized parameter measurement is required to fully match the standard specifications of complete production equipment:

• Capacity and Building Boundary Positioning: Determine the standard factory size according to daily wheat processing tonnage, ensuring 100% capacity release of processing equipment and avoiding 15%~20% output loss caused by limited space.

• Grain and Finished Product Storage Calculation: Accurately configure the volume of raw wheat silos, cleaning wheat silos, intermediate flour silos and finished product silos, supporting 12–24 hours of continuous production buffer and reducing material breakage shutdown risks by 85%.

• Supporting Load Calculation: Uniformly calculate total equipment power, dust removal air volume, floor load and fire load, reserve 15% power redundancy, and save 8% of overall civil construction costs.

• Differentiated Production Mode Matching: Customize exclusive process layout solutions for four mainstream modes: mass standard flour production, flexible multi-variety special flour production, old factory renovation and intelligent unattended factories.

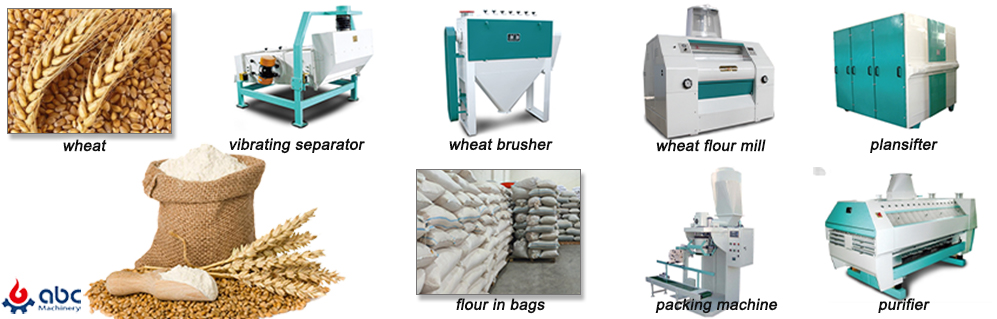

Wheat Flour Mill Production Flow Chart

Efficiency Improvement Points of Seven Functional Zones

Based on the gravity-flow wheat mill process, a standardized wheat flour processing factory is divided into seven independent functional zones. All optimization strategies are summarized from ABC Machinery’s global engineering practices, solving core pain points such as cross-contamination, complicated maintenance, high energy consumption and capacity bottlenecks:

• Raw Material Preprocessing Zone: Equipped with independent raw material feeding passages, physically isolated from finished product passages and pedestrian passages. This design reduces raw material dust overflow probability by 90% and cuts overall production loss by 1.2%, fully meeting food hygiene production standards.

• Core Grinding Zone: Processing equipment is arranged in neat rows, with a 1.5m main passage and 0.8m single-side maintenance space, plus pre-embedded lifting points. The roller replacement maintenance time is shortened by 70%, effectively increasing annual effective production time by more than 90 hours.

• Sifting and Purifying Zone: Independent compartment design with exclusive air duct system reduces flour ash content by 60%~70% and increases the proportion of high-grade special flour by 40%, greatly improving the product premium of the wheat flour mill plant.

• Flexible Flour Blending Zone: Enclosed dust-proof baffles and matrix silo layout support rapid switching of multi-type flour products. The product changeover time is reduced by 65%, and the gross profit margin of deep-processed flour products is increased by 12%.

• Finished Product Packaging and Delivery Zone: Packaging equipment is arranged along the outer wall with reserved automatic palletizing space. Complete separation of pedestrian and cargo passages shortens the transportation distance by 40% and improves factory delivery efficiency by 30%.

• By-product Recycling Zone: Independent partition and dust removal design reduces bran dust diffusion area by 85%, stabilizing finished flour cleanliness and controlling the by-product flour content within 1.5%.

• Auxiliary Supporting Zone: Sound insulation rooms reduce workshop noise by 15–20dB. The central control room faces the core processing equipment, improving fault response efficiency by 70% and reducing overall operation and maintenance labor costs by 25%.

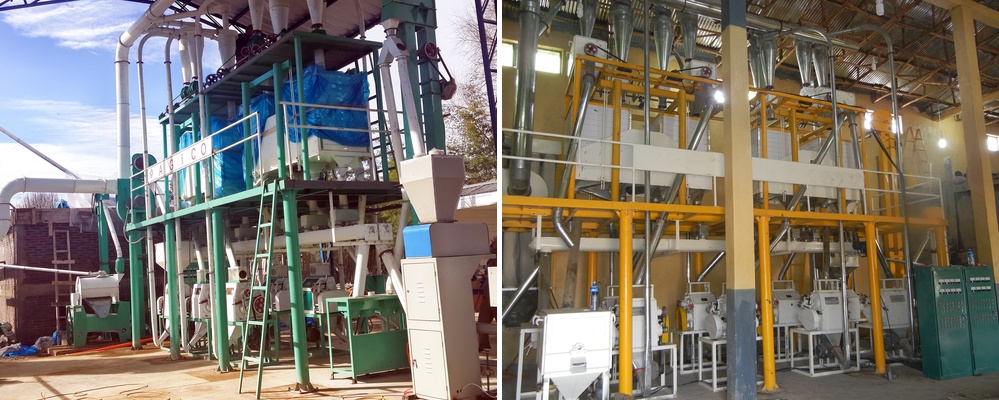

Successful Wheat Flour Mill Plant for Sale

Industry Comparison Reminder: Traditional workshops without professional zoning have more than 3 times higher cross-contamination rejection rate and 30% higher comprehensive annual operation costs. All zoning designs must be adjusted according to actual capacity and site conditions instead of copying universal templates. Feel free to contact ABC Machinery to get customized workshop layout solutions.

ABC Machinery Layout Advantages and Full-cycle Engineering Services

As a professional manufacturing and service provider in the milling industry, ABC Machinery holds ISO9001 quality system certification and CE safety certification. We provide one-stop customized plane and vertical layout drawings for global wheat processing plant projects. All solutions are perfectly compatible with self-developed processing equipment and fully meet international standards of explosion protection, fire evacuation and environmental emission.

One-sto​p Full-cycle Service Details

• Pre-project Stage: Site survey, capacity evaluation, customized layout design, providing comparative solutions;

• Equipment Manufacturing Stage: Full inspection of complete production equipment, reserving standard installation interfaces for factory construction;

• Engineering Implementation Stage: Overseas engineer on-site supervision and full-line linkage commissioning, with a one-time commissioning qualification rate of 99.8%;

• Long-term Operation Stage: Global technical training, original spare parts supply and annual layout optimization return visit, reducing comprehensive equipment operation and maintenance costs by 30%.

Global Flour Milling Machine Investors Visiting ABC Machinery

According to regional wheat characteristics, site constraints and investment budgets, we customize low-energy, low-failure and high-profit modern processing plant solutions to maximize production capacity value and product premium benefits. Whether you plan to build a new standard factory, upgrade an old workshop or optimize existing production lines, ABC Machinery provides free one-on-one professional technical support. Simply provide your factory size, daily processing capacity and flour types, and our engineers will deliver customized layout drawings, process optimization plans, capacity improvement data and investment return analysis within 24 hours. Help you avoid 80% of factory construction mistakes and build a compliant, energy-saving, efficient and high-return modern wheat flour processing project.
